Protective Coatings for SOFC Components
Ceramic coating technologies have been demonstrated to mitigate the performance reduction caused by degradation of chromium-containing ferritic stainless steel alloys. fuelcellmaterials has taken the lead in tailoring and demonstrating cost effective coating technologies, including manganese cobalt oxide (MCO) and aluminide protective coatings for the metallic interconnects and balance of plant parts for solid oxide fuel cells (SOFCs).
Why You Need Protective Coatings for SOFC Components
Protective coatings are required to prevent failure of stainless steel SOFC components

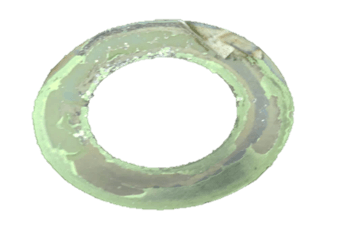

Chromium Volatility
Substrate: cathode material in contact with Crofer 22APU
Condition: 100 h, humidified air 900 °C

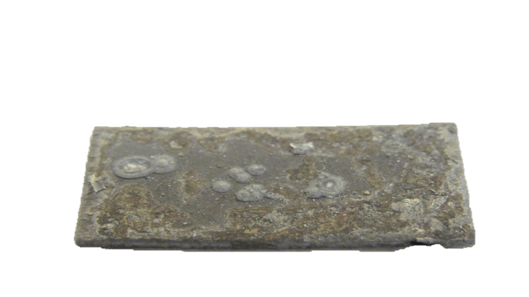

Oxidation
Condition: 304 SS – 500 h, humidified air 900 °C
Coking/Carburization
Condition: 430 SS – 100 h, carbon rich atmosphere

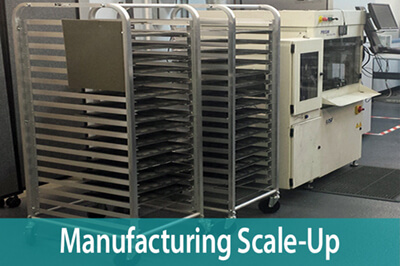

fuelcellmaterials can assist through all phases of product launch.
Interconnect coating to your specifications

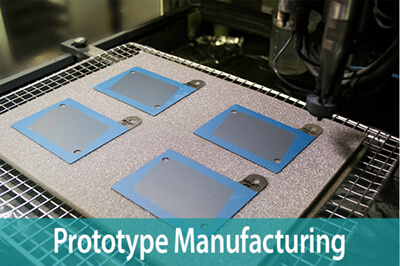

Prototype batches for process validation and stack tests
Parts are coated by our dedicated coating team
Contract coating batches for intermediate volumes
Early stage manufacturing to your specifications
Significant cost reductions for volume orders available
License product and transfer technology
Easily incorporate our technology into your manufacturing system
Materials supply agreements to ensure all your needs are met

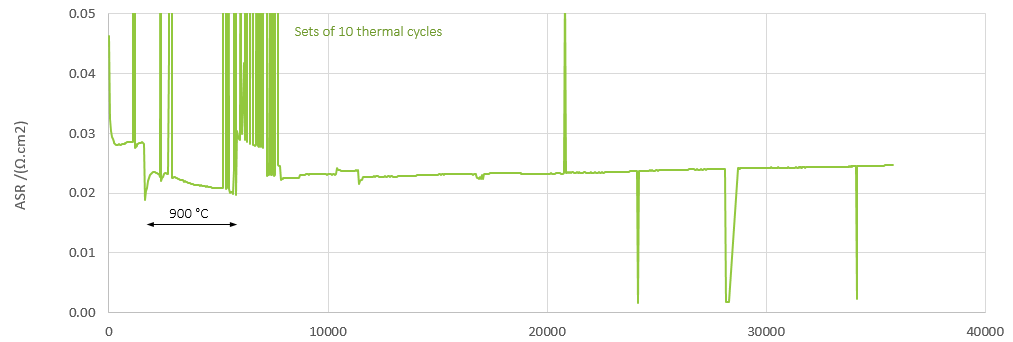

Excellent long term stability for over 35,000 hours demonstrated
Electrical ASR performance of MCO coated ferritic stainless steel
Substrate: AL 441-HP Temperature: 800 °C – 900 °C
Gas composition: humidified air (~ 3 % H2O) Current density: 0.5 A/cm2
MCO coating enables cathode active protection of metallic interconnects
ChromLokTM Microstructure

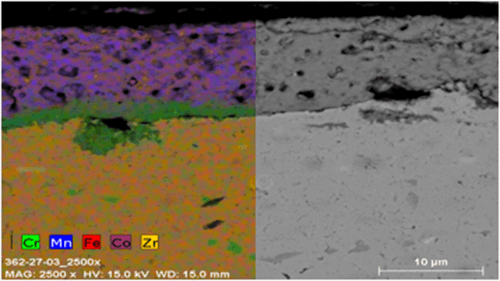

After Deposition

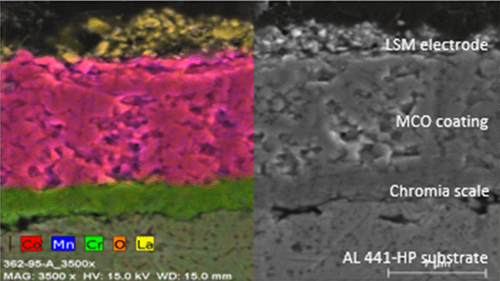

800 hrs 800 °C

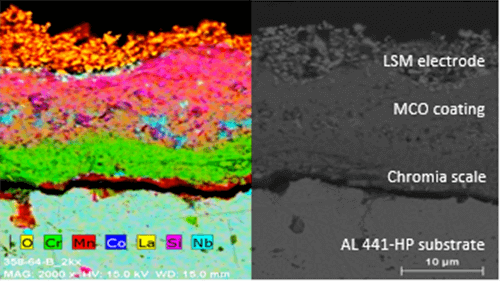

> 7000 hrs 800 °C/900 °C
Top Down MCO Coating

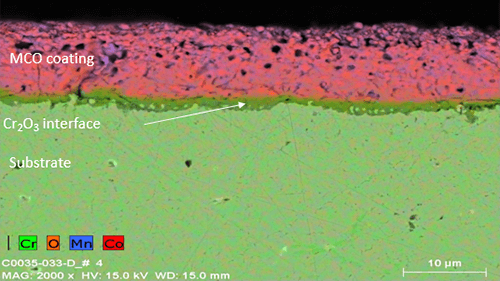

Cross Section MCO Coating
Coating: MCO oxidized
Substrate: ferritic stainless steel Crofer 22APU
Coating reproduces the microstructure produced by conventional aluminization processes

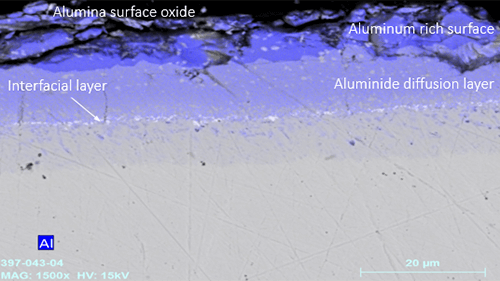

AlumiLokTM Microstructure
Aluminide Coating (AlumiLokTM)

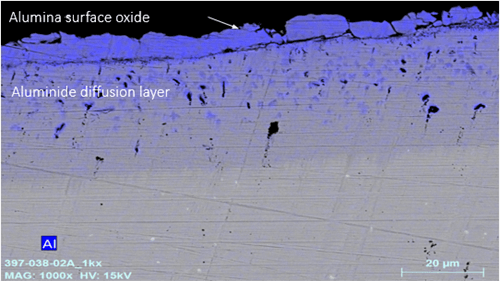

Vapor-Phase Aluminization (VPA)
Substrate: 316 stainless steel
Aluminide coating: standard processing
AlumiLokTM coating significantly improves oxidation behavior of stainless steels

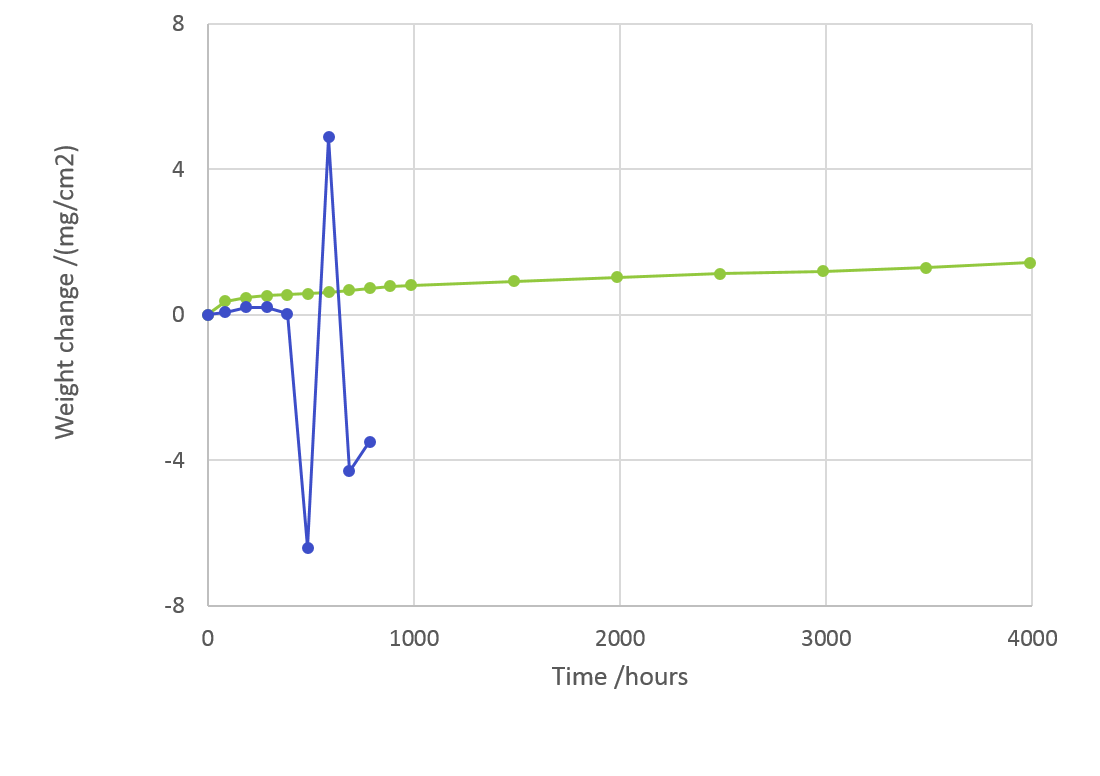

AlumiLokTM Oxidation Behavior
 |
AlumiLokTM Coated |
 |
Uncoated |
Substrate: 316 stainless steel
Temperature: 900 °C
Gas composition: humidified air
Resistance to coking in high carbon gas streams

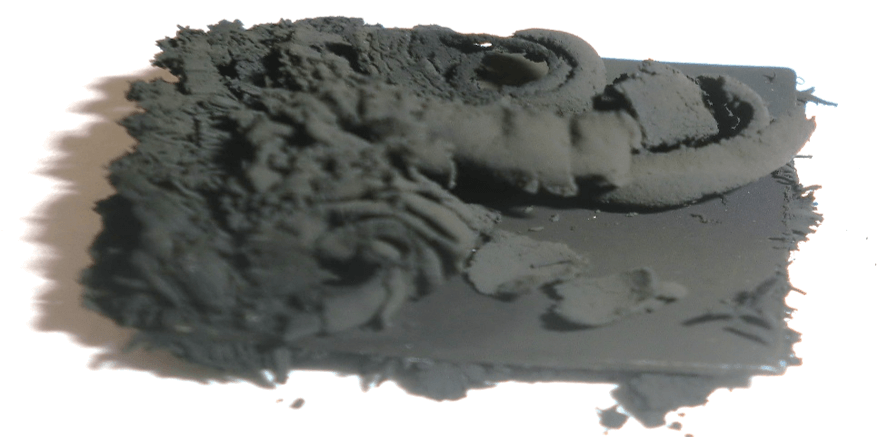

AlumiLokTM Coking Behavior
Uncoated

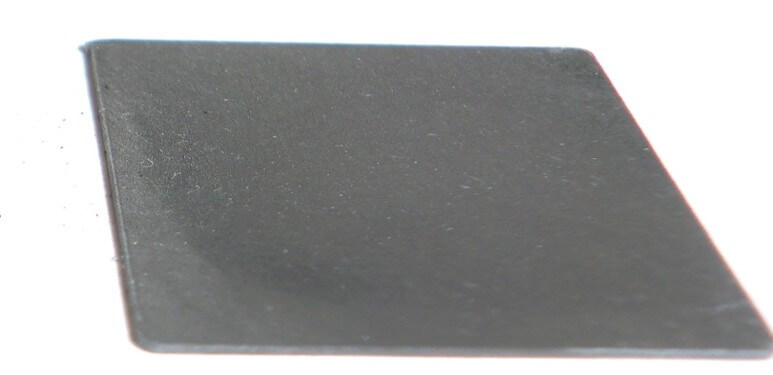

Coated
Substrate: 316 stainless steel
Exposure time: 100 hours
Temperature: 550 °C
Gas composition: 33 % H2, 30 % CO2, 24.7 % CO, and 12 % CH4
Pressure: 4 psi
